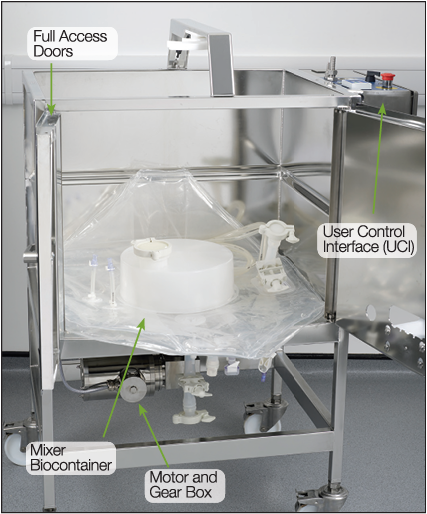

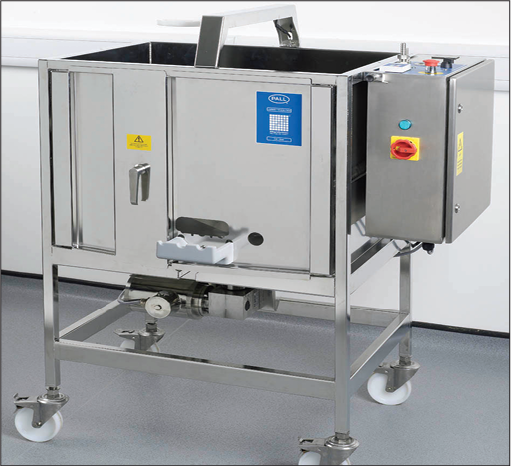

The Allegro mixers combine critical requirements for single-use technologies, such as extreme ease-of-use, with established engineering principles and criteria for robust mixer design to deliver the ultimate in mixing performance.

The Allegro mixers are available in 200 L, 500 L and 1000 L sizes, in both standard and jacketed stainless steel tote formats, and can incorporate sensors (e.g. pH, conductivity and temperature) for on-line monitoring and control. Sensor signals can be handled locally on the mixer, or alternatively, can
be fed directly to an existing Distributed Control System (DCS) or to an Automated Pall MVP singleuse system. With the added capability of load cell integration, the Allegro mixers from Pall can be fully integrated to the Allegro MVP automated single-use systems, providing complete automated process monitoring and control solutions for all applications that require mixing (e.g pH adjustment for buffers and virus inactivation).

The Allegro mixers are designed to provide exceptional mixing performance for a wide range of applications from upstream through the downstream process to formulation and filling. With jacketed and standard totes that can integrate on-line sensor technologies and load cells, potential applications include:
Upstream media preparation for cell culture Downstream pH adjustment, virus inactivation and buffer preparation
Final formulation mixing

The Allegro mixers can be combined with the Pall MVP system to fully automate mixing and filtration processes, including fluid transfer to and from the mixers. The high performance mixer lends itself especially well to difficult mixing applications (mixing dense powders or high viscosities), applications requiring repeatable, fast mixing performance, or where biologicals sensitive to shear are being mixed.
